Hot Selling Auto Vehicle Fast Charge Station Single dual-connector
Ac Fast Street Lamp Ev Charging Pile
The RGZP-60KW850-EN integrated charger is the latest generation of
LUOBINSEN commercial charger. The product is designed in accordance
with relevant standards for functionality, ergonomics and
aesthetics.
Item
Features
Model
RGZP-60KW850-EN
Size(W*D*H)
690*550*1600mm
Enclosure Rating
IP54
Operating Temperature
-30℃~50℃
Altitude
<2000m
Relative Humidity
0~95%(No condensation)
Installation Mode
Fixed Installation
MTBF
≥8760h
Input Voltage
380±15%V
Input Current
<100A
Input Frequency
50~60Hz
Input Power Factor
>0.99
Output Voltage Range
DC 200~750V
Output Voltage Range in Constant Power Mode
DC 600~750V
Output current range
2~100A
Ripple Coefficient
<0.5
Current Sharing Coefficient
<5%
Stabilized Voltage Precision
<0.5%
Stabilized Current Precision
<1%
THD
≤5%
Efficiency
>94%
Noise
<65dB
Cooling Method
Forced fan cooling
Connector Communication Mode
In accordance with DIN 70121 and ISO 15118 standard
Short circuit protection, Over/under voltage protection,
Voltage/current limitation protection, Overheat protection, SPD,
Plug temperature monitoring function, Circuit contactor adhesion
protection.
Emergency Stop
Disconnect the charger and EV to prevent emergency incidents.
Product Details
Function
DC integrated charger is composed of charging module, power
interface, charging interface, protection module, control module,
measuring module, HMI,cabinet and etc..
Charging management function, HMI can display charging
mode,charging current, charging voltage, charging time and account
information.
The charger can dynamically adjust the charging mode according to
BMS charging voltage and current character. The charging outputis
adjusted by therequest of BMS, when the charging current requested
is larger than the current output range in constant power charging
mode, the charging current should output according to the maximum
allowable current value of the charger.
Intelligent power distribution function, in case of fault of
individual module, the module can be separated without of affecting
the normal operation of the charger.

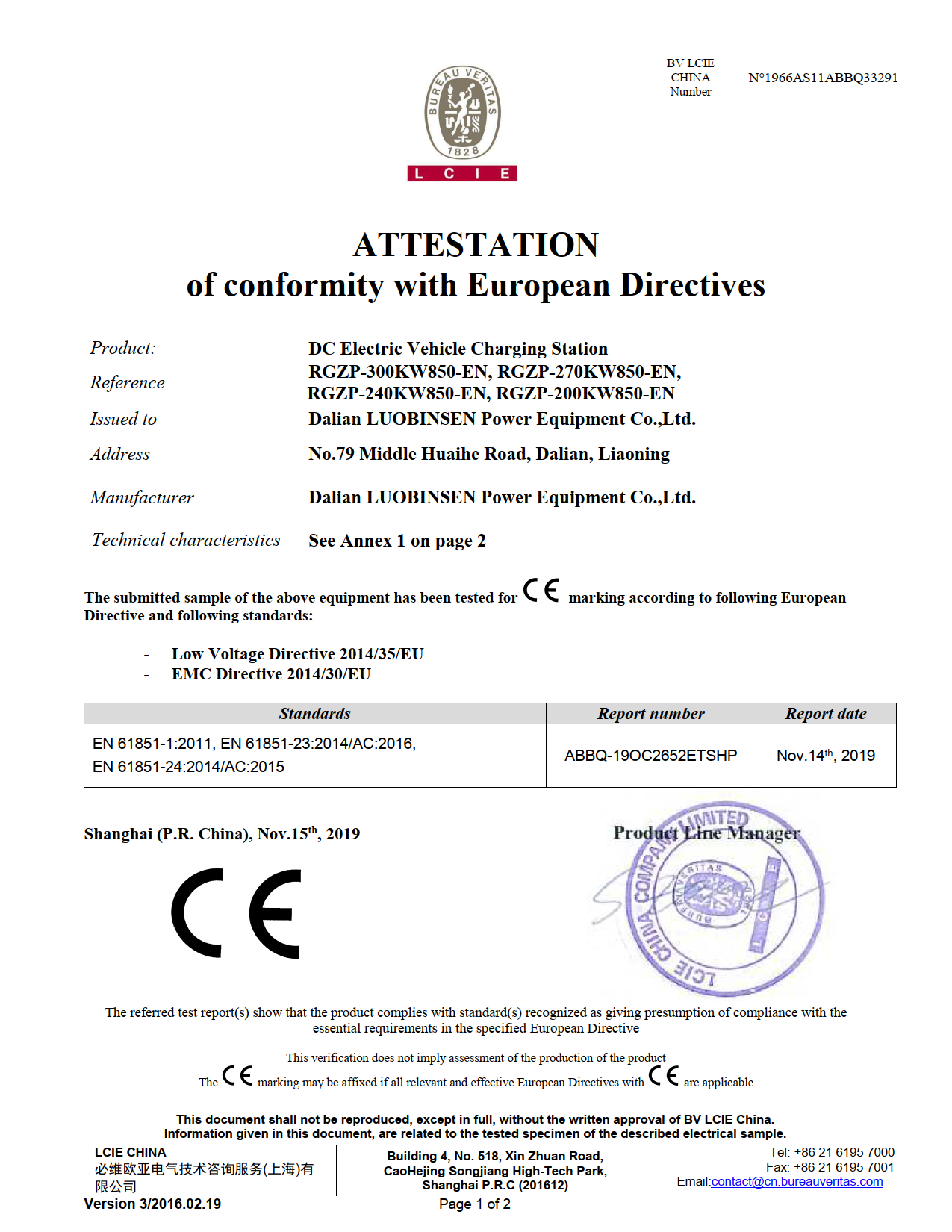

The charger meets the relevant CE certification requirements and
the charging connector meets the CCS2 requirements. The charger
could support a varietyof background management platforms.
Relevant Standards
IEC 61851 Electric vehicle conductive charging system
IEC 62196 Plugs, socket-outlets, vehicle connectors and vehicle
inlets-Conductive charging of electric vehicles
DIN 70121 Electromobility-Digital communication between a d.c. EV
charging station and an electric vehicle for control of d.c.
charging in the Combined Charging System
ISO 15118 Road vehicles—Vehicle-to-Grid Communication Interface
